Warp-Speed Remote GDAL Warping of Cloud-Optimised GeoTIFFs • cptkirk

“Warp speed!” cptkirk warps remote Cloud-Optimised GeoTIFFs fast: it saturates the network with concurrent reads, then hands the warp to GDAL.

It combines two tools that are each best-in-class at one thing:

async-tiff saturates remote byte-range reads of (Cloud-Optimised) GeoTIFFs and decodes tiles concurrently.
GDAL (via gdalraster) is the best warper there is.

cptkirk is the thin pipe between them. From a gdalwarp-style request it works out exactly which source pixels the warp will need, streams only those tiles over async-tiff at the appropriate overview level, stages them as an in-memory GDAL source, then hands the actual reprojection and resampling to GDAL. It reimplements none of GDAL’s warp logic; it only sizes and saturates the fetch.

When it helps

cptkirk’s single lever is I/O concurrency: it wins by scattering many small byte-range reads and keeping the network saturated. That pays off on multi-band rasters, where bands = streams a subset of band planes concurrently. Embedding stacks with tens of bands are the case it was built for.

On a single-band asset there is no band subset to exploit and the read is one contiguous tile stream per window: exactly the case GDAL’s /vsicurl already handles well, so cptkirk adds little over it. Reach for cptkirk when the source is multi-band; for single-band sources plain GDAL is usually just as fast.

Two ways in

ck_warp() is the recommended, batteries-included entry point, with named t_srs / te / tr / ts / r / bands arguments plus sensible defaults (multi-threaded warp, generous working memory, and tr-grid-aligned output so tiles at the same resolution stack cleanly).
warp_remote() is a faithful, defaults-free sibling of gdalraster::warp(), with the same src / dst / t_srs / cl_arg call shape but the source streamed remotely. Reach for it when you want GDAL’s exact behaviour with full control via cl_arg.

Both validate the request against a tiny in-memory probe before fetching, so a bad CRS, resampling method or creation option fails in milliseconds instead of after a download.

Installation

# requires a Rust toolchain (rustc >= 1.78) and GDAL (via gdalraster)
pak::pak("belian-earth/cptkirk")

Usage

library(cptkirk)

# inspect a remote COG (header + IFDs only, no pixels fetched)
url <- paste0(
  "https://data.source.coop/tge-labs/aef/v1/annual/2021/36S/",
  "xekh5rjs4wg6wb9b4-0000000000-0000000000.tiff"
)

(m <- cog_info(url))
#> ── cog_info ────────────────────────────────────────────────────────────────────
#> <https://data.source.coop/tge-labs/aef/v1/annual/2021/36S/xekh5rjs4wg6wb9b4-0000000000-0000000000.tiff>
#> size: 8192 x 8192 px (67.1 Mpx)
#> bands: 64 Int8
#> resolution: 10 (CRS units)
#> crs: EPSG:32736
#> nodata: -128
#> overviews: 13 (8192x8192, 4096x4096, 2048x2048, 1024x1024, 512x512, 256x256,
#> 128x128, 64x64, 32x32, 16x16, 8x8, 4x4, 2x2, 1x1)
#> band names: "A00", "A01", "A02", "A03", "A04", "A05", …, "A62", and "A63"

# warp just a ~6 km window of the tile -- only the source tiles covering this
# extent are streamed
gt <- m$geotransform
x0 <- gt[1] + 4000 * gt[2]
y0 <- gt[4] + 4000 * gt[6]
te <- c(x0, y0 - 8000, x0 + 8000, y0)   # AOI in the tile's CRS (EPSG:32736)

r <- ck_warp(
  src   = url,
  dst   = tempfile(fileext = ".tif"),
  te    = te,                # area of interest
  tr    = c(15, 15),         # 15 m output (an overview is selected)
  r     = "average",
  bands = c(11,10,9)         # subset bands at the fetch
)

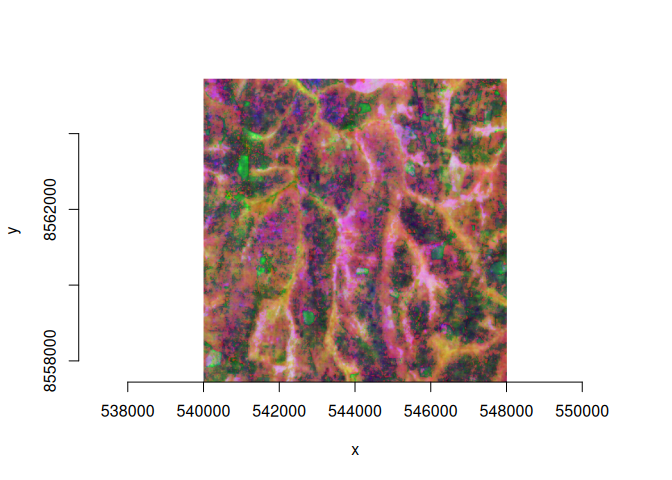

ds <- new(gdalraster::GDALRaster, r)
gdalraster::plot_raster(ds)

ds$close()

t_srs / te / tr / ts / r follow the gdalwarp interface, and any extra raw flags pass straight through via cl_arg. ck_warp() aligns output to the tr grid by default (gdalwarp -tap); set tap = FALSE, or use warp_remote(), for GDAL’s exact requested extent.

Pixels straight into R

ck_read() is ck_warp() that hands back a base-R array — carrying geotransform / crs / nodata attributes — instead of writing a file, handy for quick extraction and inspection:

a <- ck_read(url, te = te, tr = c(30, 30), bands = c(11, 10, 9))
dim(a)                # c(nrow, ncol, nband)
#> [1] 267 267   3
names(attributes(a))  # dim, plus geotransform / crs / nodata
#> [1] "dim"          "geotransform" "crs"          "nodata"

Warping many areas from the same raster? Open it once with cog_source() and pass the handle in place of the URL to pay the metadata round-trips only once.

Authentication

Remote object-store sources (s3://, gs://, az://) authenticate from the process environment – and cptkirk reads the same variables as GDAL’s /vsi* drivers, so an existing GDAL setup is a drop-in:

Provider	Set (GDAL names work as-is)
AWS S3	`AWS_ACCESS_KEY_ID`, `AWS_SECRET_ACCESS_KEY`, `AWS_SESSION_TOKEN`, `AWS_REGION`
AWS, public bucket	`AWS_NO_SIGN_REQUEST=YES` (set `AWS_REGION` too)
AWS, custom endpoint	`AWS_S3_ENDPOINT`, `AWS_HTTPS`, `AWS_VIRTUAL_HOSTING`, `AWS_REQUEST_PAYER`
Google Cloud	`GOOGLE_APPLICATION_CREDENTIALS` (service-account JSON)
Azure Blob	`AZURE_STORAGE_ACCOUNT` + `AZURE_STORAGE_ACCESS_KEY` (or a SAS token)

Most names are shared with object_store and forward verbatim; the handful that differ (AWS_S3_ENDPOINT, AWS_NO_SIGN_REQUEST, the Azure account name, …) are translated for you. Settings are read from the environment or from gdalraster::set_config_option(). No credential ever passes through R – only the non-secret knobs (endpoints, no-sign flags) are translated R-side; secrets go straight from the environment into the reader. With no static credentials the usual chain (web-identity, ECS, EC2 instance metadata) still applies.

How it picks what to fetch

Window. The target extent is reprojected into the source CRS (with edge densification) to find the source-pixel window the output covers.
Overview. The target resolution is mapped into source units to pick the finest overview level whose decimation does not exceed what the output needs.
Bands. bands = subsets at the fetch, so only the requested bands’ bytes are streamed.

The streamed window becomes an in-memory GDAL dataset; GDAL does the rest.
