Getting started with a5R

Source: vignettes/a5R.Rmd
a5R.Rmd

Index a point

Map a longitude/latitude coordinate to a cell at a given resolution (0–30). Higher resolutions produce smaller cells.

cell <- a5_lonlat_to_cell(-3.19, 55.95, resolution = 5)
cell
#> <a5_cell[1]>
#> [1] 633e000000000000

Convert back to the cell centre point:

a5_cell_to_lonlat(cell)
#> <wk_xy[1] with CRS=OGC:CRS84>
#> [1] (-3.280745 56.43135)

Cell boundaries

Get the boundary polygon for one or more cells:

boundary <- a5_cell_to_boundary(cell)
boundary
#> <wk_wkb[1] with CRS=OGC:CRS84>
#> [1] <POLYGON ((-4.490769 56.63193, -4.575103 55.93184, -4.654266 55.23196, -3.592316 55.41531, -2.521971 55.5901, -2.031558 56.23106...>

plot(boundary, col = "#206ead20", border = "#206ead", asp = 1)

Boundaries are returned as wk_wkb vectors by default (set format = "wkt" for WKT). Both integrate directly with sf, terra, and other spatial tooling via the wk package.

Hierarchy

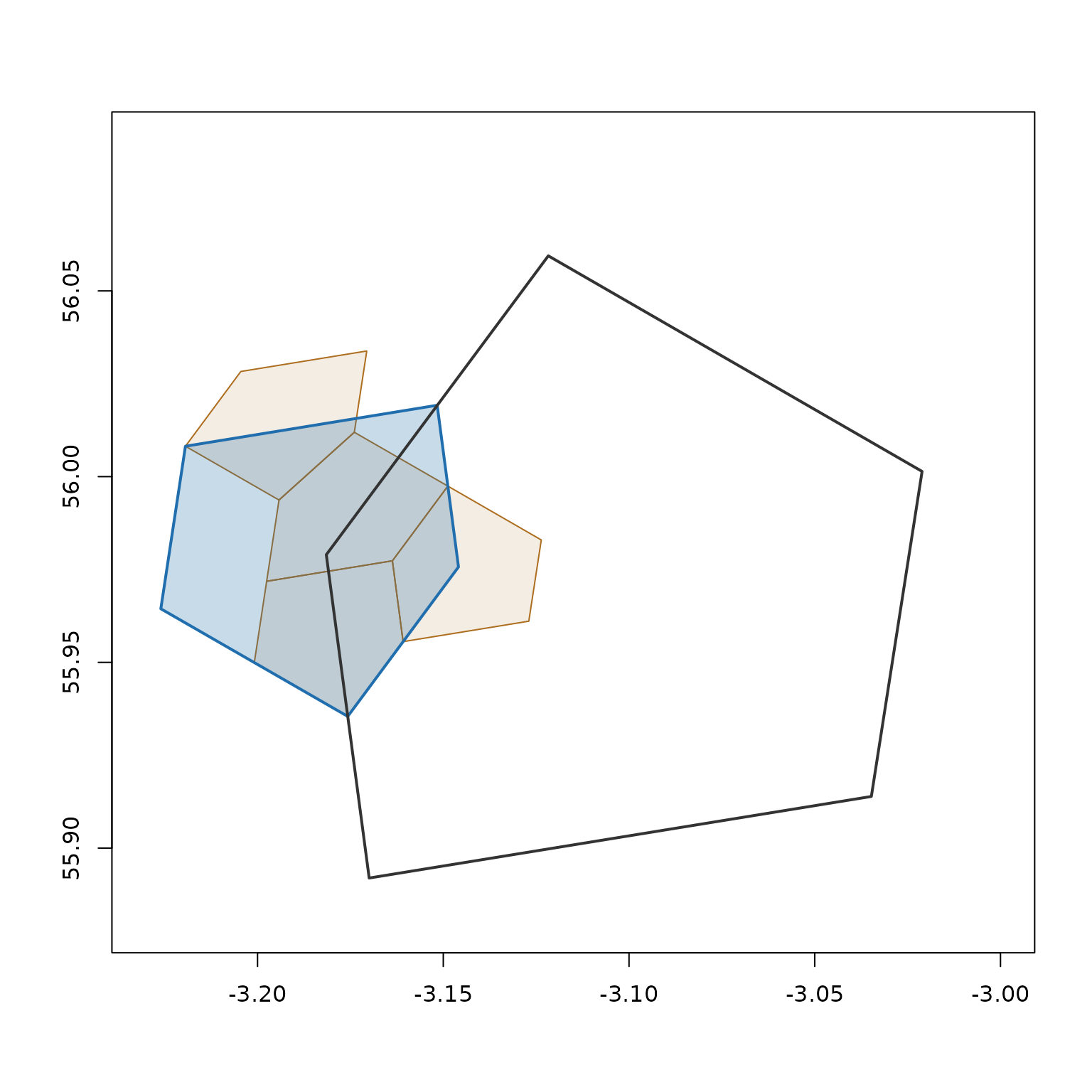

Every cell has a parent at a coarser resolution and children at finer resolutions. A5 cells have 4 children per level.

a5_cell_to_parent(cell)
#> <a5_cell[1]>
#> [1] 6338000000000000
children <- a5_cell_to_children(cell)
children
#> <a5_cell[4]>
#> [1] 633c800000000000 633d800000000000 633e800000000000 633f800000000000

Cell area decreases geometrically with resolution:

a5_cell_area(0:5)
#> Units: [m^2]
#> [1] 4.250547e+13 8.501094e+12 2.125273e+12 5.313184e+11 1.328296e+11
#> [6] 3.320740e+10

Grid generation

a5_grid() returns all cells at a target resolution that cover a given area. Pass a bounding box as a numeric vector:

cells <- a5_grid(c(-3.3, 55.9, -3.1, 56.0), resolution = 8)
length(cells)
#> [1] 3

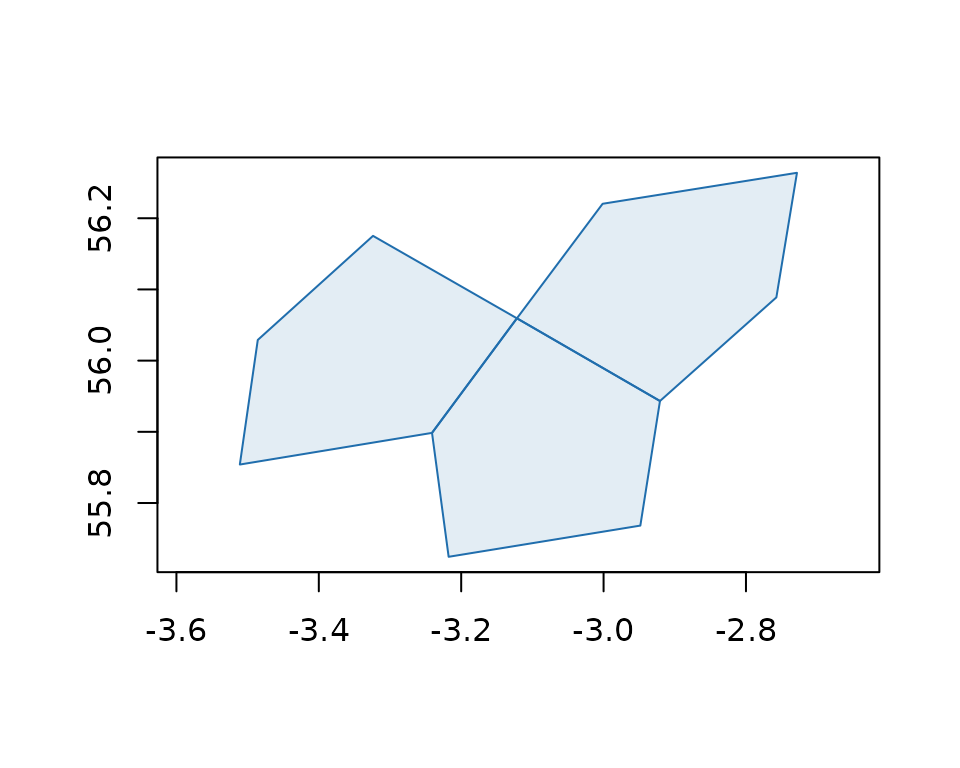

plot(a5_cell_to_boundary(cells), col = "#206ead20", border = "#206ead", asp = 1)

Any geometry that wk can handle works too — polygons, sf objects, or even a5_cell vectors:

poly <- wk::wkt("POLYGON ((-3.3 55.9, -3.1 55.9, -3.1 56, -3.3 56, -3.3 55.9))")
a5_grid(poly, resolution = 5)
#> <a5_cell[1]>
#> [1] 633e000000000000

Compact and uncompact

When a complete set of siblings is present, a5_compact() merges them into their shared parent, reducing the number of cells without losing coverage:

children <- a5_cell_to_children(cell)
length(children)
#> [1] 4

compacted <- a5_compact(children)
compacted
#> <a5_cell[1]>
#> [1] 633e000000000000

# Round-trip back to the original set
a5_uncompact(compacted, resolution = 6)
#> <a5_cell[4]>
#> [1] 633c800000000000 633d800000000000 633e800000000000 633f800000000000
